System sizes

All sizes on one view

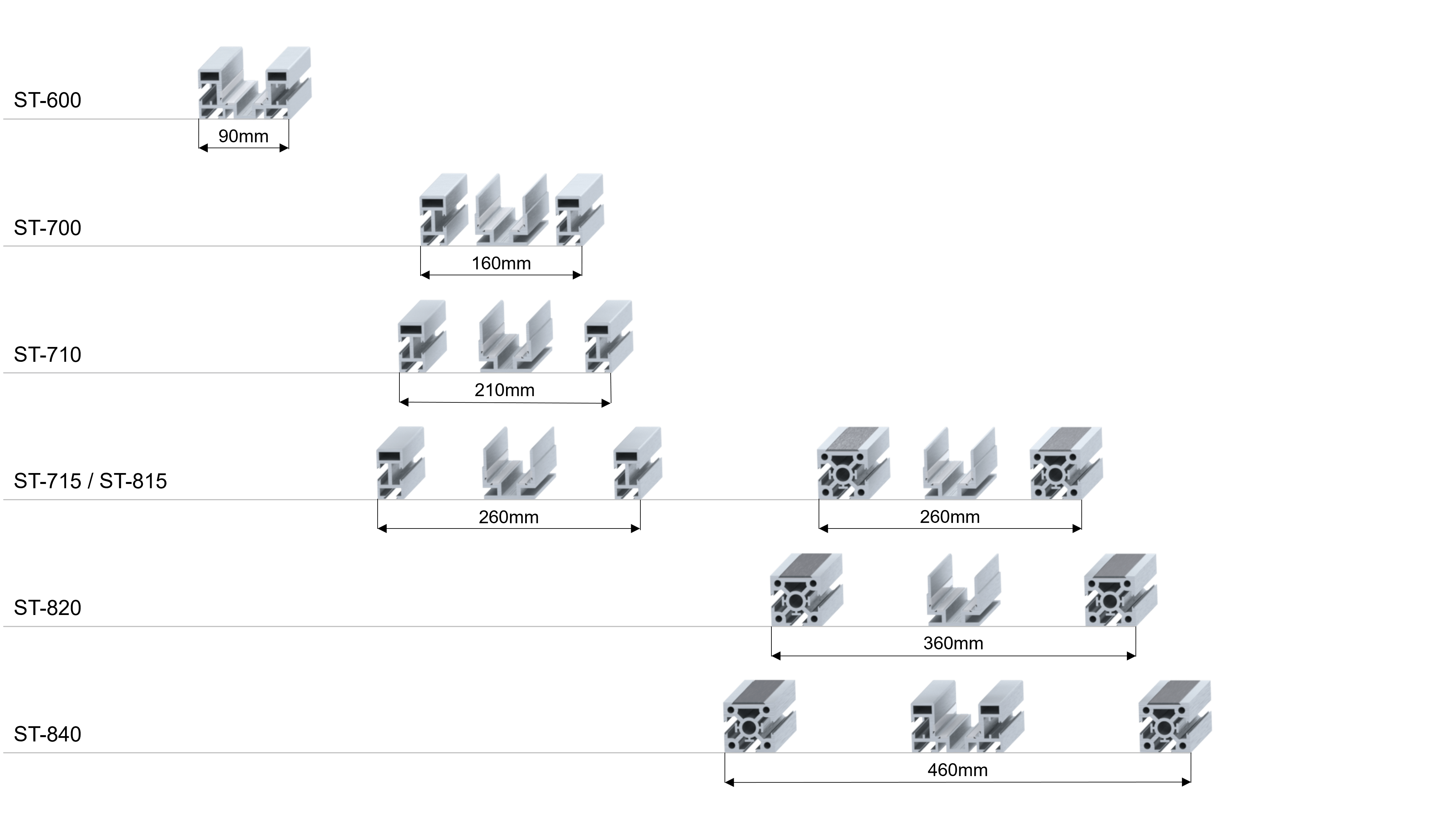

SIGMA transfersystem system sizes ST-600 ST-840

Up to 8Kg:

Weight absorption via chain


Light workpiece carriers are used up to 8 kg workpiece weight:

• ST-600 - system width 90 mm
• ST-700 - system width 160 mm
• ST-710 - system width 210 mm
• ST-715 - system width 260 mm

In these, the weight of workpiece, workpiece holder and workpiece carrier is taken directly from the chain

Up to 150Kg:

Weight absorption via side profiles


From 8 kg workpiece weight heavy workpiece carriers are used:

• ST-815 - system width 260 mm
• ST-820 - system width 360 mm
• ST-840 - system width 460 mm

The load of the workpiece, the workpiece holder and the workpiece carrier are received by casters, which rest on the side profiles; on the chain only a spring load of about 2 x 40 N. acts.

Technical specifications

- breaking load of the chain 20 000 N
- Ambient temperature - 20 ° C to + 90 ° C
- length max. 60m chain length per drive
- Chain speed 70/169 / 253mm / s or Custom.
- Engine power 180/370/550 / 750W
- Nominal voltage 3 x 400 V 50 Hz
- Protection class IP 54
- System widths from 90 mm to 460 mm
- Workpiece sizes 80 x 80 mm to 450 x 1 700 mm
- Workpiece weights up to max. 150 kg per workpiece carrier
- Centering accuracy ± 0.06mm and ± 0.02mm
- ESD compatible
on request

Specifications - breaking load of the chain 20 000 N
- Ambient temperature - 20 ° C to + 90 ° C
- length max. 60m chain length per drive
- Chain speed 70/169 / 253mm / s or Custom - Engine power 180/370/550 / 750W
- Nominal voltage 3 x 400 V 50 Hz
- Degree of protection IP 54
- System widths 90 mm to 460 mm
- Workpiece carrier sizes 80 x 80 mm to 450 x 1 700 mm
- Workpiece weights up to max. 150 kg per workpiece carrier
- Centering accuracy ± 0.06mm and ± 0.02mm
- ESD compatible on request
